Discovery 4-2500 CNC Diamond Wire Saw for Stone Cutting

1
MOQ
To Be Negotiable
prezzo
Discovery 4-2500 CNC Diamond Wire Saw for Stone Cutting
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Lunghezza del filo: 10m
Peso lordo: 6000 kg
Dimensione di elaborazione massima: 2000*3000*1500 mm
Parole chiave: Macchina di pietra
Velocità del cavo: 0-40m/s
Modello n.: Scoperta 4-2000/2500/3000
Consumo d'acqua: 6m3/H
Controllare: CNC
Dimensione di elaborazione massima: 3000*2500*1500 mm
Diametro del filo: 0,6-1,8 mm
Automazione: Automatico
Tipo di controllo: CNC
Lunghezza di taglio: 20-60 m
Diametro: Da 8,5 mm a 11,5 mm
Tagliare la precisione: Alto
Mandrino: 15KW
Dimensione del carrello: 1400*2500 mm
Distanza di adeguamento: 450 mm
Motore lordo: 11 kW
Sistema di controllo: Sistema PLC
Potenza nominale: 2,2 kW
Informazioni di base
Luogo di origine: Jinjiang, Fujian, Cina
Marca: Xianda Machinery
Certificazione: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Numero di modello: Scoperta 4-2000/2500/3000
Termini di pagamento e spedizione
Imballaggi particolari: Pacchetto di plastica, adatto al trasporto marittimo
Tempi di consegna: 1 mese
Termini di pagamento: L/c ， t/t ， d/p ， Western Union ， PayPal ， Money Gram ， altri
Capacità di alimentazione: 1000 set/anno
Descrizione di prodotto

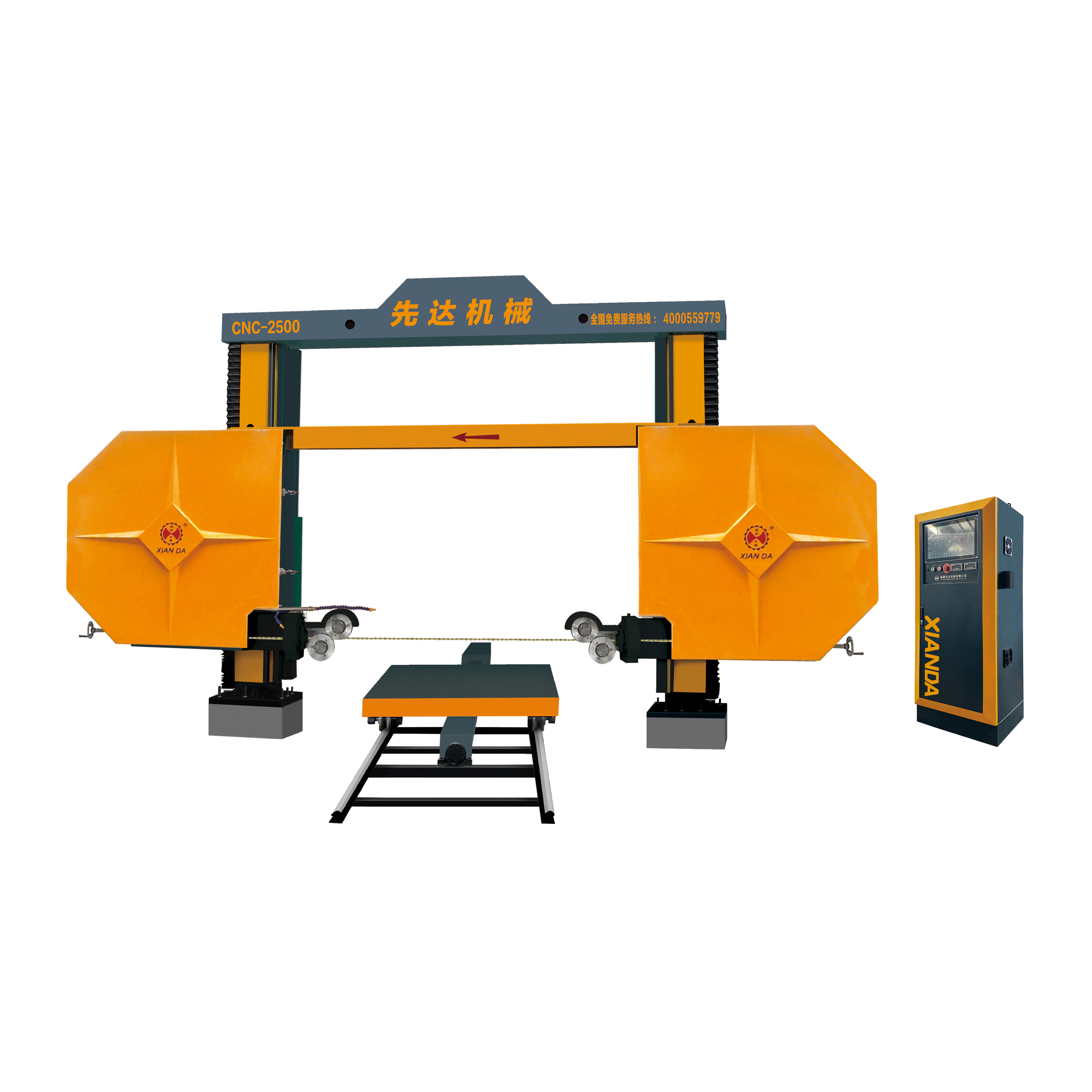

CNC Diamond Wire Saw Discovery 4-2500 Ultimate Stone Cutting Machine
Key Specifications
Attribute Value
Wire Length 16.7m
Gross weight 6000kg
Max processing size 2000*3000*1500mm
Wire Speed 0-40m/s
Model NO. Discovery 4-2000/2500/3000
Water Consumption 4m3/H
Control CNC
Wire Diameter 0.6-1.8mm
Automation Automatic
Cutting Precision High
Spindle 15KW
Control System PLC SYSTEM
Technical Specifications
Parameter Max processing size Wheel diameter Trolley size Table bearing weight Wire speed Main motor Outline dimension Gross weight Water consumption
Discovery4-2000 2000*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 6800*6300*3950mm 6000kg 4m³/h
Discovery4-2500 2500*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 7800*6300*3950mm 6250kg 4m³/h
Discovery4-3000 3000*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 8800*6300*3950mm 6500kg 4m³/h
Product Gallery
Discovery 4-2500 CNC Diamond Wire Saw for Stone Cutting 0 Discovery 4-2500 CNC Diamond Wire Saw for Stone Cutting 1 Discovery 4-2500 CNC Diamond Wire Saw for Stone Cutting 2
Product Description

The Diamond Wire Saw Machine is a cutting machine specially designed for cutting granite, marble, and sandstone. It is equipped with a 16.7-meter wire, which is capable of cutting materials up to 2000*3000*1500mm in size. The machine is equipped with a four-spindle linkage to ensure an accurate cutting process. It is powered by a motor that offers a wire speed of 0-40m/s, and consumes 4m3/H of water. The Diamond Wire Saw Machine is reliable and has a one-year warranty.

Applications

XIANDA MACHINERY's diamond wire saw machine is a reliable, durable and cost-saving tool used for cutting and processing various stones such as marble, granite, quartz, sandstone, limestone and more.

Certified by API, CCC, SONCAP, GOST, ISO, CE, SGS; IAF, the diamond wire saw machine can be purchased with a minimum order quantity of 1 SET and is available for both sea and land transportation with suitable plastic package.

Customization Options
  • Brand Name: XIANDA MACHINERY
  • Model Number: Discovery 4-2000/2500/3000
  • Place of Origin: Jinjiang, Fujian, China
  • Minimum Order Quantity: 1 SET
  • Packaging: Plastic Package, Suitable for Sea Transportation
  • Delivery Time: 1 month
Support and Services

We offer comprehensive technical support and service for Diamond Wire Saw Machine. Our technicians are available to provide support and maintenance for your machine.

Our technical support services include:

  • Troubleshooting and technical support
  • Preventive maintenance and repair services
  • On-site support and advice
  • Software updates and upgrades
  • Replacement parts for Diamond Wire Saw Machine
Frequently Asked Questions
Q: What is the Brand Name of the Diamond Wire Saw Machine?

A: The Brand Name is XIANDA MACHINERY

Q: What is the Model Number of the Diamond Wire Saw Machine?

A: The Model Number is Discovery 4-2000/2500/3000

Q: Where is the place of origin for the Diamond Wire Saw Machine?

A: The place of origin is Jinjiang, Fujian, China
