Automatic Bridge Multiblade Block Cutter with Max Blade Diameter 2800mm and Max Processing Length 3600mm for Granite Marble

1
MOQ
To Be Negotiable
prezzo
Automatic Bridge Multiblade Block Cutter with Max Blade Diameter 2800mm and Max Processing Length 3600mm for Granite Marble
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Evidenziare:

3600mm Automatic Multiblade Block Cutter

,

2800mm Automatic Multiblade Block Cutter

,

Granite Automatic Multiblade Block Cutter

Informazioni di base
Luogo di origine: Jinjiang, Fujian, Cina
Marca: Xianda Machinery
Certificazione: CCC, ISO, CE
Numero di modello: BTC-2200
Termini di pagamento e spedizione
Tempi di consegna: 30 giorni
Termini di pagamento: L/C, D/A, D/P, T/T, Western Union
Capacità di alimentazione: 1000 set/anno
Descrizione di prodotto

Basic Info.

Model NO.
BTC-2200/2500/2800
Usage
Granite, Marble
Application
Machinery & Hardware, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
PLC
Certification
ISO
Color
Black and Yellow
Max Blade Diameter
2200mm/2500mm/2800mm
Max Processing Length
3000/3300/3600mm
Max Processing Width
2200mm
Max Lifting Travel
1350mm
Main Motor
45/55kw
Gross Motor
56/66kw
Water Consumption
15m³/H
Gross Weight
14000/14500/15000kgs
Specification
7350/7850x4500/4800x3400/3700mm
Trademark
XIANDA
Origin
Fujian, China
HS Code
84641090
Production Capacity
1000 Sets/Year

Packaging & Delivery

Package Size
800.00cm * 480.00cm * 370.00cm
Package Gross Weight
15000.000kg

Product Description

multi-blade large stone block cutting machine marble granite block cutter

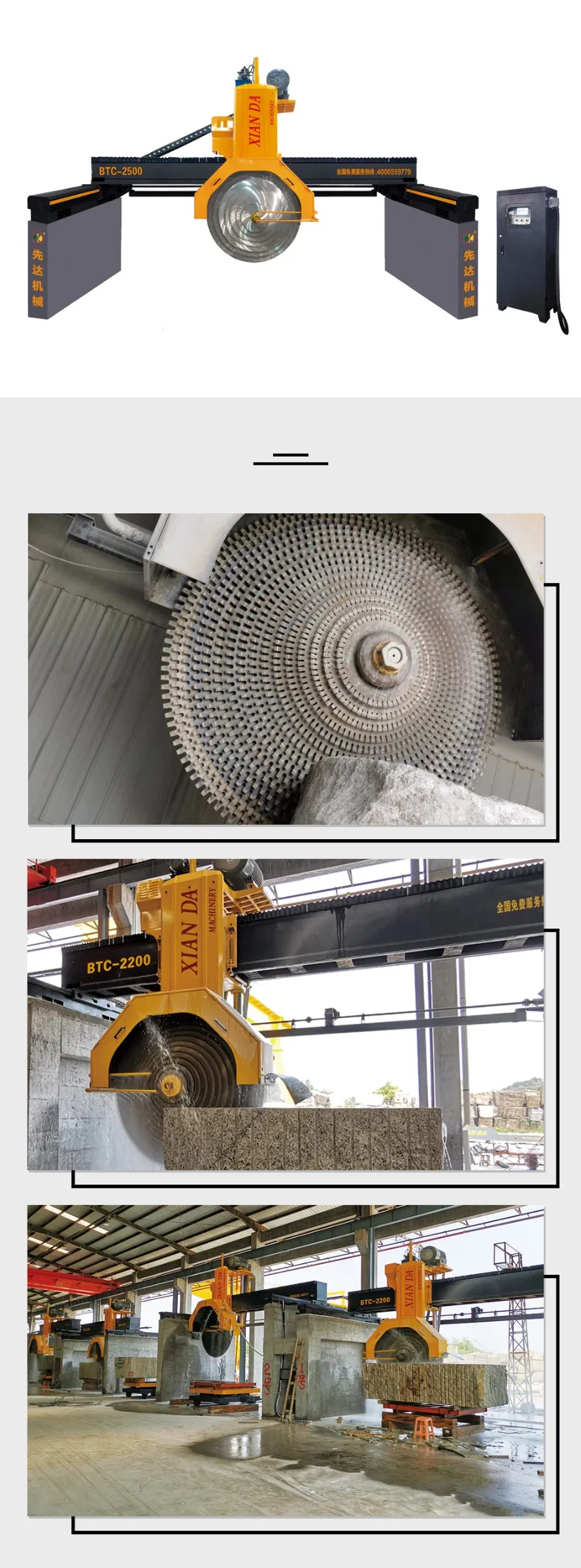

Product Show


Automatic Bridge Multiblade Block Cutter with Max Blade Diameter 2800mm and Max Processing Length 3600mm for Granite Marble 0

BTC-2500/2800 uses inverter to control left-right feeding adjusts the speed according to the stone material.It uses hydraulic lifting system(screw lifting system optional),forward-backward slicing uses high-precision screw nut driving,automatic slicing,main spare parts adopt imported good-quality materials;The block can be placed in the ground directly to save worktable and its maintenance costs;Thus the whole machine is featured as high cutting efficiency,high slicing precision,flatness of plate after cutting,high stability,easy-operating to suit specially cutting granite and marble block with high wave.

Parameter Unit BTC-2200 BTC-2500 BTC-2800
Max blade diameter mm φ2200 φ2500 φ2800
Max processing length mm 3600 3300 3000
Max processing width mm 2200 2200 2200
Max lifting stroke mm 1350 1350 1350
Main motor kw 45/55 45/55 55
Gross motor kw 56/66 56/66 66
Outline dimension mm 8000*4800*3700 8000*4800*3700 8000*4800x3700
Water consumption m³/h 15 15 15
Gross weight kg 14000 14500 15000







Factory Overviews

Automatic Bridge Multiblade Block Cutter with Max Blade Diameter 2800mm and Max Processing Length 3600mm for Granite Marble 1



Certifications

Automatic Bridge Multiblade Block Cutter with Max Blade Diameter 2800mm and Max Processing Length 3600mm for Granite Marble 2



Our Services




We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.

32 years' Manufacture Experience.Special shape stone cutting machine more than 70% market occupied in China.

Top 5 stone cutting machine manufacturer with ISO&CE certificate.

Products are selling to more than 20 countries, with more than 10 years overseas experience.Use of top brands to ensure high quality.

We can provide competitive price and discount for large quantity.Strength supply capacity ,more 1000 sets per year.

After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.

We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.
