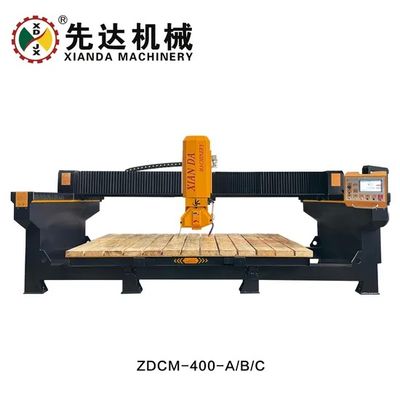

High Quality Monoblock Bridge Cutting Machine for Marble, Slab Tile, Sintered Stone, and Quartz Stone (ZDCM-400-A/B)
Product Specifications
| Model Number |
ZDCM-400-A/B |
| Type |
CNC Cutting Machine |
| Applications |
Granite, Marble, Concrete Curb, Block Processing |
| Voltage |
380V |
| Automation |
Automatic |
| Control System |
CNC |
| Certifications |
CE, ISO, SGS, CCC, SONCAP, GOST |
| Max Processing Size |
3200*2000*80mm |
| Worktable Size |
3200*2000mm |
| Main Motor Power |
15kW |
| Water Consumption |
3m³/H |
| Machine Dimensions |
5000*3100*2600mm |
| Warranty |
1 Year |
| Origin |
Jinjiang, Fujian, China |
Technical Parameters
| Parameter |
Unit |
Value |
| Control System Type |
mm |
CNC |
| Blade Diameter |
mm |
300-400 |
| Worktable Size |
mm |
3200*2000 |
| Max Processing Size |
mm |
3200*2000*80 |
| Worktable Tilting Degree |
° |
0-85 |
| Cutting Head Rotation Degree |
° |
0-360 |
| Cutting Head Chamfer Rotating Degree |
° |
0-45 |
| Main Motor Power |
kW |
15 |
| Outline Dimension |
mm |
5000*3100*2600 |
| Water Consumption |
m³/h |
3 |
Product Features
- Microcomputer control system for easy operation
- Integrated structure for simple installation
- CNC gantry milling processed frame for enhanced stability
- High-precision linear guide sliders and grinding-grade ball screws
- High-end servo system for improved accuracy and efficiency
- Reduced failure rate for reliable operation
- Ideal for high-value, large-scale plate processing
About Xianda Machinery
Fujian Xianda Machinery Co., Ltd is a leading Chinese manufacturer of stone cutting machines and tools, established in 1985. Our 20,000m³ facility is located in Jinjiang Wuli Industrial Area, adjacent to the historic Wuli Bridge and the world's largest stone market in Shuitou.
With over 34 years of experience, we specialize in developing diamond wire saw machines, bridge cutting machines, carving machines, and profiling linear machines. We hold approximately 80% of China's market share for column processing machines and serve customers in more than 30 countries.
Our commitment to "Top Technology and Superior Quality" has earned us CE and ISO certifications, along with numerous industry awards. We actively support education and public welfare initiatives as part of our corporate philosophy.
Our Services
- Comprehensive machine installation and operation training
- Overseas engineer support for machinery service
- 24/7 online after-sales support
- One-year warranty on all machines
- Prompt response within 24 hours for all inquiries
- Free replacement for confirmed quality-related failures
Frequently Asked Questions
How to place an order with your company?
1. Inquiry and professional quotation
2. Confirm price, lead time, and payment terms
3. Receive proforma invoice with company seal
4. Make deposit payment and send bank receipt
5. Production begins after payment confirmation
How is after-sales service provided?
Our engineers can be dispatched for machinery assembly and technical support worldwide.
Are you a manufacturer?
Yes, we have been manufacturing stone machinery for over 30 years.
What is the warranty period?
We provide one year warranty on all machine parts.
What materials can this machine process?

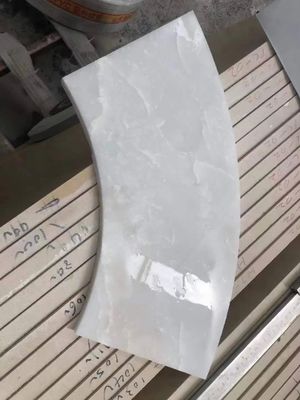

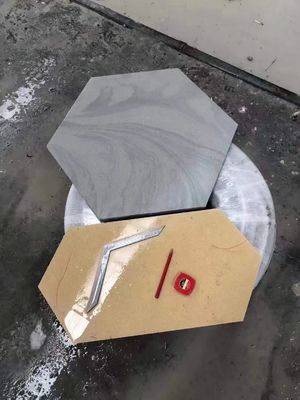

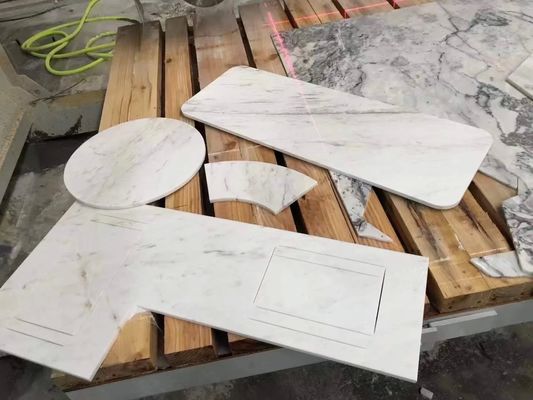

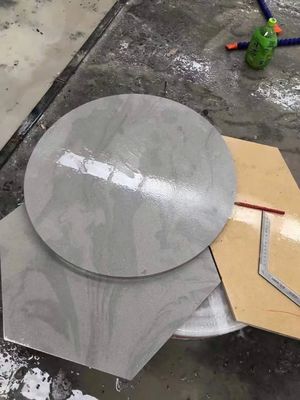

This machine is designed for cutting columns, large arc-shaped slabs, and special stone shapes in materials like marble, granite, and quartz.
