5 Axis PLC Bridge Cutting Machine for Granite, Quartz & Marble
Product Overview

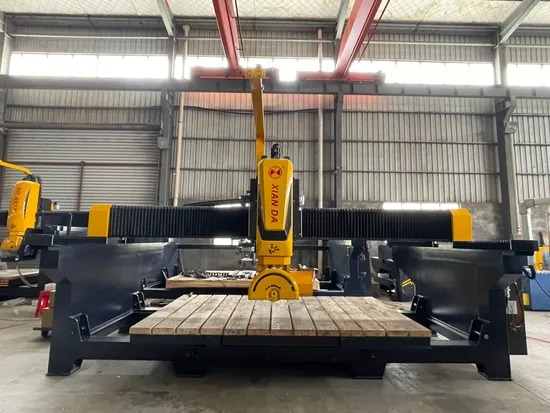

Xianda Stone Machinery presents the advanced 5 Axis Bridge Cutting Machine with CNC System Control, designed for precision cutting of marble, granite, and quartz for kitchen countertops and other stone applications.
Key Features
- 5 Axis linkage CNC System with Bus-based absolute value servo
- High-precision linear guide rail and ball screw transmission
- Oil-immersed track structure for enhanced durability

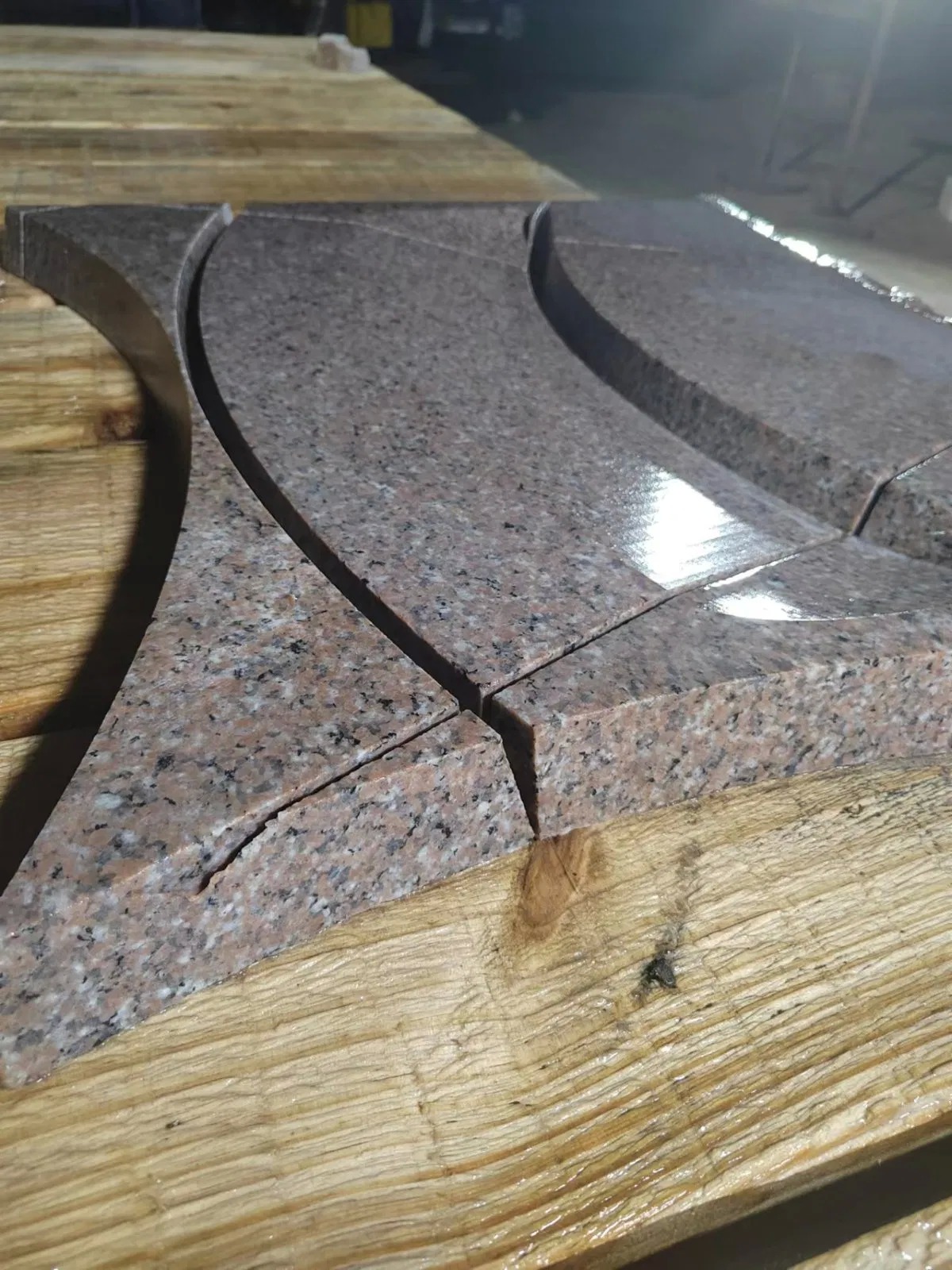

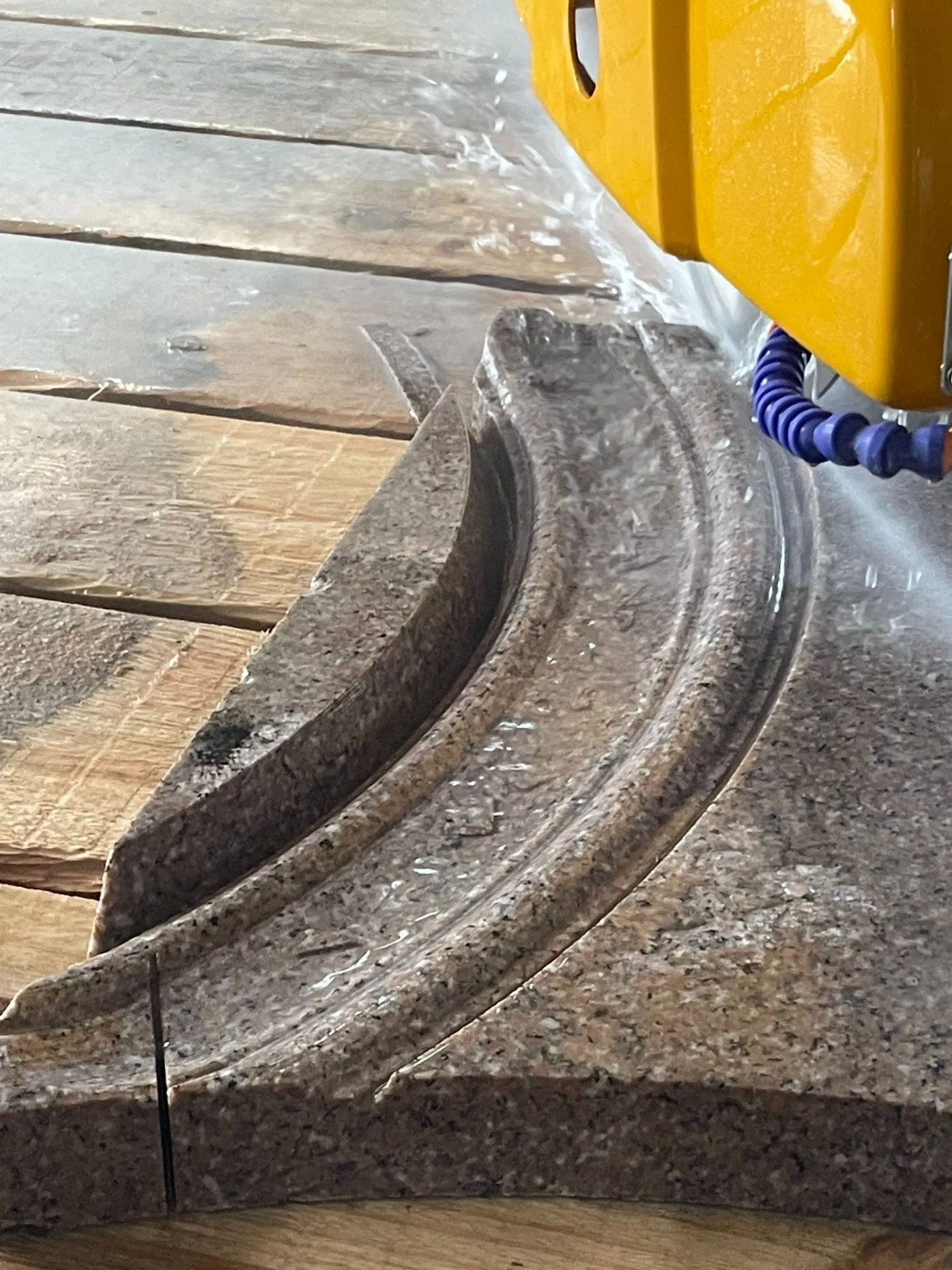

- Multi-function capabilities including arbitrary-shaped lines and special edge profiling
- Compact footprint with simple operation interface
Technical Specifications
| Parameter |
Unit |
Create 600 |
| Blade diameter |
mm |
350-600 |
| Max processing size |
mm |
3400×2000×180 |
| Worktable size |
mm |
3400×2000 |
| Table tilting degree |
mm |
0-85 |
| Head rotating degree |
° |
0-360 |
| Main motor power |
kw |
22 (permanent Magnetic Synchronous Motor) |
| Outline dimension |
mm |
5800×3650×3900 |
Basic Information

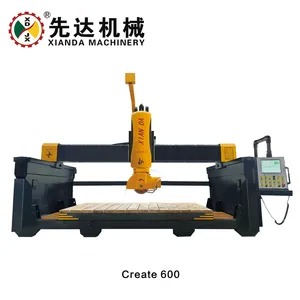

Model: Create 600
Type: CNC Cutting Machine
Applications: Machinery & Hardware, Art & Craft, Construction, Stone Industry
Certifications:
CE
ISO
GOST
CCC
About Xianda Machinery
Established in 1985, Fujian Xianda Machinery Co., Ltd is a leading manufacturer of stone cutting machines and tools, located in Jinjiang, Fujian, China. With over 34 years of experience, we specialize in developing advanced stone processing equipment including diamond wire saw machines, bridge cutting machines, and profiling linear machines.
Quality Assurance
- All machines undergo strict inspection before shipment
- Testing video available upon request
- One year warranty on all machines
- 24-hour technical support
Frequently Asked Questions
How to place an order?
1. Inquiry with our sales team
2. Confirm price, lead time, and payment terms
3. Receive proforma invoice
4. Make deposit payment
5. Production begins after payment confirmation
What about after-sales service?
Our engineers can be dispatched for machine assembly and training. Technical support is available 24/7.
What is the warranty period?
We provide one year warranty for all machine parts.
Keywords
stone cutting machine
CNC bridge saw
granite cutting
marble processing
5 axis stone cutter
